Navigation trust isn't merely about convenience - it's fundamentally about safety, accuracy, and reliability when your location awareness directly impacts your wellbeing. Whether you're traversing remote wilderness, navigating urban environments, or responding to emergency situations, understanding the strengths and limitations of your navigation tools can mean the difference between reaching your destination safely and encountering serious difficulties. Trust in navigation tools is earned through consistent performance across varied conditions, and this trust must be calibrated to each tool's specific capabilities and vulnerabilities.

Compass vs GPS: Which Navigation Tool Should You Trust?

How Does a Traditional Compass Work?

The Physics of Magnetic Navigation

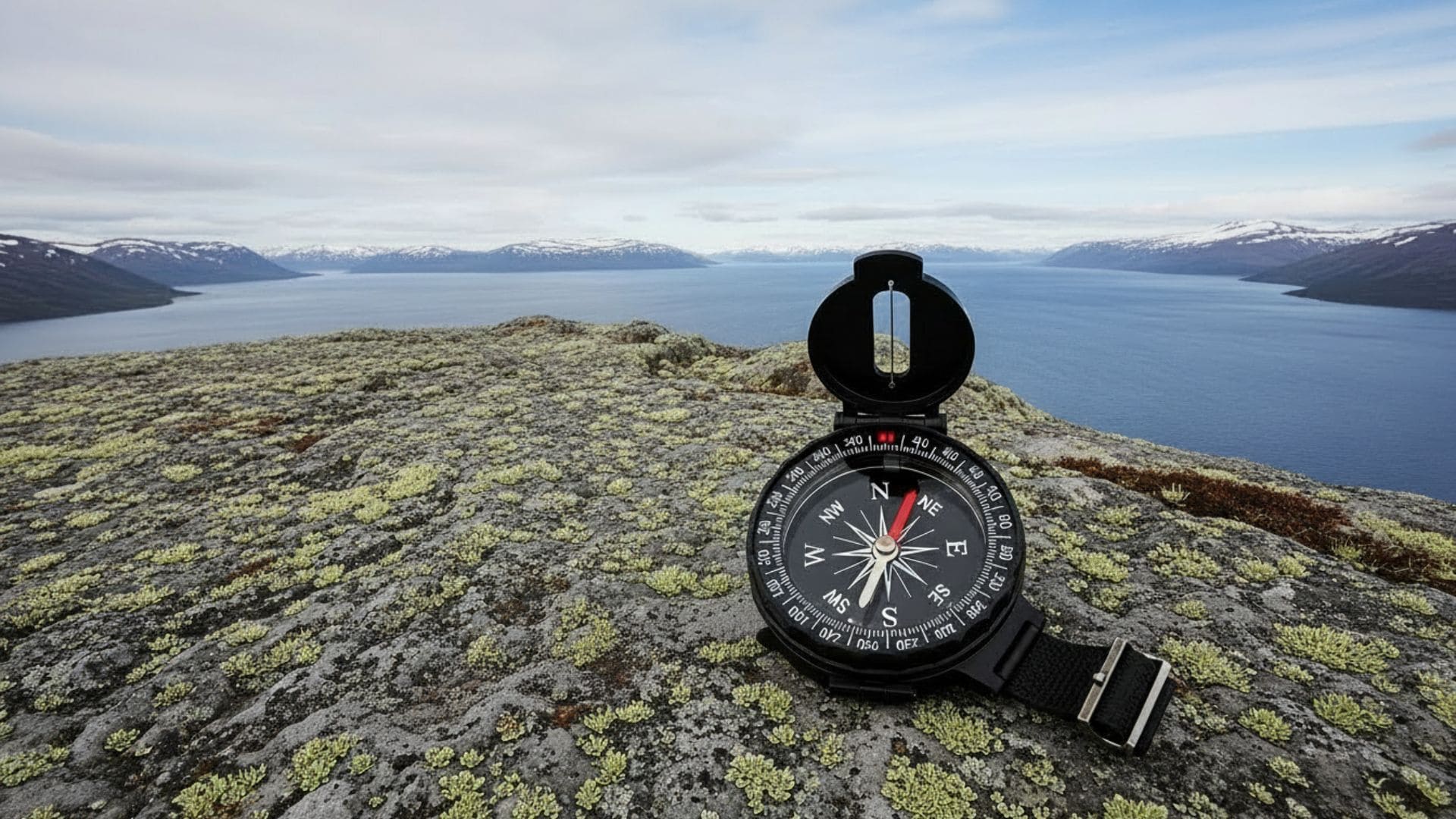

A traditional compass operates through a beautifully simple principle: it detects and responds to Earth's natural magnetic fields. The compass needle is a lightweight magnetized pointer, typically suspended on a nearly frictionless pivot point, allowing it to rotate freely and align itself with the planet's magnetic field lines.

Earth's Magnetic Field Generation

The Earth's magnetic field originates deep within our planet's core, approximately 2,900 kilometers beneath the surface. The core consists of two distinct layers: a solid inner core composed primarily of iron and nickel crystals (at temperatures exceeding 5,000°C), and a liquid outer core of molten iron and nickel alloys. The intense gravitational pressure at these depths maintains the solid inner core despite extreme temperatures, while the outer core remains in a liquid state.

The prevailing scientific theory, known as the geodynamo theory, explains that Earth's magnetic field is generated by the continuous movement of electrically conducting molten iron in the outer core. This movement, driven by heat escaping from the core and the planet's rotation (the Coriolis effect), creates electrical currents through a process called convection. These electrical currents, in turn, generate magnetic fields in a self-sustaining cycle that has persisted for billions of years.

The Magnetosphere's Protective Shield

Earth is enveloped by an extensive system of magnetic fields collectively called the magnetosphere, extending tens of thousands of kilometers into space. This invisible shield serves critical protective functions, deflecting harmful solar wind (streams of charged particles continuously emitted by the Sun) and cosmic radiation that would otherwise strip away our atmosphere and make the planet's surface inhospitable to life. The magnetosphere is not static; it dynamically responds to space weather events, compressing on the Sun-facing side and stretching into a long tail on the opposite side. During intense solar storms, the magnetosphere can fluctuate dramatically, occasionally allowing energetic particles to penetrate deeper into Earth's atmosphere, creating phenomena such as auroras and potentially disrupting electronic systems.

Magnetic North vs True North: Understanding Declination

A critical concept for accurate compass navigation is understanding the distinction between magnetic north and true north. Magnetic north is the direction toward which a compass needle points, following the Earth's magnetic field lines toward the north magnetic pole. This magnetic pole is currently located in the Canadian Arctic, but it's not stationary - it shifts position continuously, moving approximately 55 kilometers per year as of recent measurements.

True north, conversely, is the direction along a meridian line toward the geographic North Pole, the fixed point where Earth's rotational axis intersects the planet's surface at 90°N latitude. This is the "north" represented on maps and used in geographic coordinate systems.

The angular difference between magnetic north and true north at any given location is called magnetic declination (or magnetic variation). Declination varies significantly depending on your position on Earth - it can range from 0° in locations where magnetic and true north align, to more than 20° in some regions. For example, in parts of eastern North America, magnetic north lies west of true north (westerly declination), while in western North America, it lies east (easterly declination). Navigators must account for this declination when converting compass bearings to map bearings, or they risk accumulating substantial directional errors over distance. A 10° declination error translates to approximately 17 meters of lateral deviation for every 100 meters traveled.

How Does GPS Determine Your Position?

The Fundamental Principle of GPS

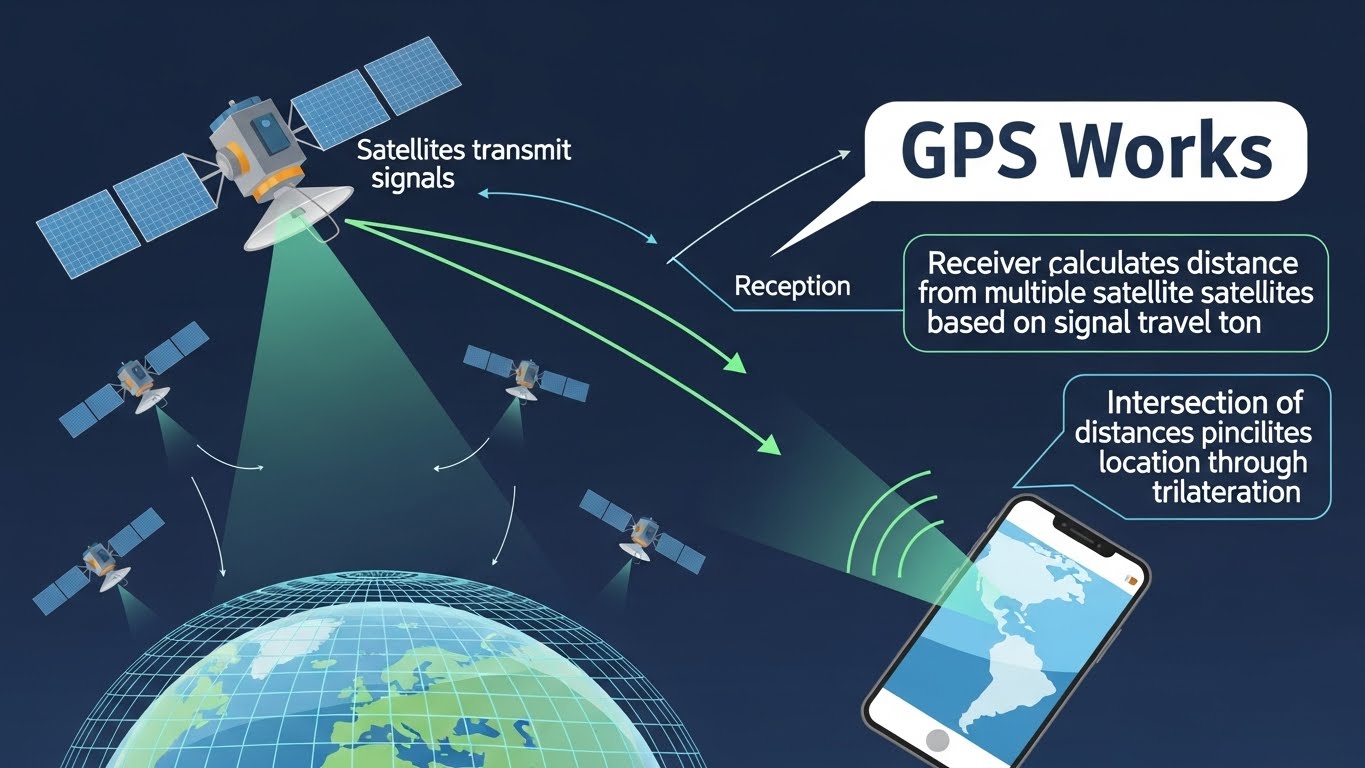

The Global Positioning System (GPS) determines your position through a sophisticated process of satellite signal timing and mathematical calculation. A GPS receiver (whether in a dedicated device, smartphone, or vehicle) doesn't transmit signals to satellites; rather, it passively receives timed radio signals broadcast by GPS satellites orbiting Earth.

Compass vs GPS: Which Navigation Tool Should You Trust?

Trilateration: The Mathematical Foundation

GPS positioning relies on a geometric principle called trilateration (often incorrectly referred to as triangulation, which is a different technique). Each GPS satellite continuously broadcasts a signal containing two critical pieces of information: the satellite's precise location in space and the exact time the signal was transmitted (maintained by extremely accurate atomic clocks aboard each satellite).

When your GPS receiver picks up these signals, it compares the transmission timestamp with its internal clock to determine how long the signal took to travel from satellite to receiver. Since radio signals travel at the speed of light (approximately 299,792 kilometers per second in a vacuum, slightly slower through the atmosphere), the receiver can calculate the distance to each satellite using the simple formula: distance = speed × time.

Here's where the mathematics becomes elegant: if your receiver knows it's a certain distance from one satellite, your position must lie somewhere on an imaginary sphere surrounding that satellite. Receiving signals from a second satellite creates a second sphere, and your position must lie where these two spheres intersect - a circle. Adding a third satellite creates a third sphere, and the intersection of all three spheres narrows your position to just two points in space. One of these points is typically far out in space or inside the Earth, leaving only one realistic ground-level position.

In practice, GPS receivers need signals from at least four satellites to determine your position accurately. The fourth satellite helps solve for time synchronization - GPS receivers don't have atomic clocks, so they need to correct for clock drift between their internal clock and the satellites' precise time.

The Global Network Behind GPS Accuracy

The GPS constellation consists of approximately 31 operational satellites (maintained by the United States Space Force) orbiting at an altitude of about 20,200 kilometers above Earth's surface. These satellites are arranged in six orbital planes, each inclined at 55° to the equator, ensuring that at least four satellites are visible from virtually any point on Earth at any time.

Supporting this satellite network is a complex ground infrastructure including:

This infrastructure continuously monitors satellite positions, clock accuracy, and signal integrity, making corrections as needed to maintain positioning accuracy typically within 5-10 meters for civilian receivers under open-sky conditions, and within 30 centimeters for advanced differential GPS systems.

How Reliable Is a Compass in Real Conditions?

Sources of Magnetic Interference

While a compass's mechanical simplicity contributes to its reliability, it remains vulnerable to magnetic interference from both natural and artificial sources:

Electromagnetic Interference from Technology:

Natural Magnetic Phenomena:

When Compass Readings Can Mislead You

Metallic Interference: The most common source of compass error in practical use is proximity to metallic objects. Large metal structures like vehicles, buildings, bridges, or machinery can distort the local magnetic field substantially. Even smaller items (belt buckles, knives, ice axes, mobile phones, watches) can affect compass accuracy if positioned too close to the instrument. Professional navigators maintain a rule of keeping metal objects at least 30-50 centimeters from their compass during readings.

Compass vs GPS: Which Navigation Tool Should You Trust?

Declination Ignorance: Failing to account for magnetic declination is perhaps the most insidious compass error because it's systematic and accumulates over distance. A navigator who doesn't adjust for local declination will travel in the wrong direction consistently, potentially ending up kilometers off-course on a long journey.

Local Magnetic Anomalies: Certain geographic areas contain concentrated magnetic minerals that create local magnetic anomalies. These can cause compasses to point in incorrect directions within specific zones. Such anomalies are often documented on topographic maps in affected regions.

Polar Regions: Compasses become increasingly unreliable as you approach the magnetic poles. Near these poles, the magnetic field lines become nearly vertical rather than horizontal, causing compass needles to dip and lose their ability to indicate direction accurately. This "magnetic dip" makes traditional compasses essentially useless in extreme polar regions.

How Reliable Is GPS When You Need It Most?

Real-World GPS Accuracy

For civilian users, GPS typically provides position accuracy within 5-10 meters (16-33 feet) under optimal conditions - open sky visibility with signals from multiple satellites. However, this represents ideal circumstances. In practical applications, several factors can significantly degrade GPS accuracy.

Modern GPS devices have improved considerably, with some advanced receivers achieving sub-meter accuracy by utilizing multiple satellite constellations (GPS, GLONASS, Galileo, BeiDou) simultaneously and employing signal enhancement techniques like WAAS (Wide Area Augmentation System) or EGNOS (European Geostationary Navigation Overlay Service).

Signal Blockage and Urban Challenges

Urban Canyon Effect: In dense urban environments with tall buildings, GPS signals face multiple challenges. Satellite signals can be blocked entirely by structures, creating "urban canyons" where receivers can only "see" satellites in a narrow strip of sky directly overhead. This limited satellite visibility degrades position accuracy significantly.

Multipath Interference: Urban areas also create multipath errors, where GPS signals bounce off buildings, glass facades, and other reflective surfaces before reaching your receiver. These reflected signals arrive at slightly different times than direct signals, confusing the receiver's distance calculations and potentially causing position errors of 10-50 meters or more.

Indoor and Underground Limitations: GPS signals are relatively weak radio waves that cannot penetrate solid structures effectively. Inside buildings, underground, or under heavy forest canopy, GPS receivers often lose signal lock entirely or produce highly inaccurate position estimates based on reflected or heavily attenuated signals.

Battery and Satellite Dependency Issues

Power Requirements: GPS receivers require continuous electrical power to function. Satellite signal acquisition and processing consume significant battery power, particularly during initial satellite lock acquisition (which can take several minutes) and when tracking multiple satellites simultaneously. In cold weather, battery capacity diminishes substantially - lithium batteries can lose 20-50% of their capacity at subfreezing temperatures. For extended wilderness expeditions, power management becomes a critical concern.

Satellite Availability and Atmospheric Effects: Although the GPS constellation is designed for redundancy, satellite failures, maintenance periods, or unfavorable orbital geometry can occasionally reduce the number of visible satellites, degrading accuracy. Additionally, the ionosphere (50-1,000 km altitude) and troposphere (0-12 km altitude) can delay GPS signals variably, introducing positioning errors that change with atmospheric conditions, time of day, and solar activity.

System Vulnerabilities: GPS depends entirely on a functioning satellite network and ground control infrastructure. While catastrophic system failure is unlikely, GPS is theoretically vulnerable to deliberate interference (jamming), spoofing attacks, or service disruption during major geopolitical events. The system is also controlled by a single nation (United States), though civilian GPS signals are guaranteed for international use.

Compass vs GPS: Direct Comparison of Strengths and Weaknesses

Advantages of the Compass for Trustworthy Orientation

Operational Simplicity and Reliability: A compass's greatest strength is its elegant simplicity. With no batteries, no satellites, and no complex electronics, a quality compass will function reliably for decades with minimal maintenance. It works instantly - no boot-up time, no satellite acquisition delay - simply hold it level and read the bearing.

Environmental Independence: Compasses function in virtually any weather condition - rain, snow, fog, or extreme temperatures have negligible effect on basic magnetic operation. They work equally well at sea level or on mountain summits, in dense forests or open deserts.

Quick Direction Assessment: For rapid, approximate direction finding (determining which way is generally north, or establishing a rough bearing toward a visible landmark) compasses provide immediate answers. This rough directional information is often sufficient for maintaining general orientation or making basic navigational decisions without requiring precise positioning.

No Infrastructure Dependency: A compass requires nothing beyond Earth's magnetic field. There are no satellites to track, no signals to receive, no towers to communicate with. This independence makes compasses particularly valuable in scenarios where technological infrastructure might be compromised or unavailable.

Advantages of GPS for Precise Location

Pinpoint Position Accuracy: GPS provides your absolute position (latitude, longitude, and elevation) with accuracy far exceeding what any compass can offer. This precise positioning enables you to identify your location on a map with certainty, track your movement path, and navigate to specific coordinates.

Comprehensive Navigation Capabilities: Modern GPS devices offer extensive functionality:

Route Planning and Optimization: GPS devices can calculate efficient routes considering distance, terrain, or travel time, and can dynamically recalculate if you deviate from the planned path - capabilities impossible with a compass alone.

Digital Integration: GPS seamlessly integrates with digital maps, allowing you to visualize your position relative to terrain, hazards, destinations, and points of interest. This contextual awareness surpasses traditional map-and-compass navigation in terms of situational awareness and planning capability.

Key Limitations That Affect Trust in Each Tool

Compass Limitations:

GPS Limitations:

Which Should You Trust in Different Scenarios?

Hiking and Backcountry Adventures

For wilderness travel, both tools deserve your trust, used complementarily. GPS excels as your primary navigation tool for:

However, carry a quality baseplate compass and paper maps as essential backup because:

Best Practice: Use GPS for precision navigation and tracking, but regularly confirm your position using map and compass, maintaining proficiency with traditional navigation skills. Carry spare batteries or a solar charger for GPS devices.

Urban Navigation and Road Travel

In cities and on roads, GPS is the clear primary choice because:

A compass provides minimal value in typical urban navigation but can serve as a basic orientation reference if GPS fails completely, helping you maintain a general sense of direction relative to major landmarks.

Best Practice: Rely primarily on GPS navigation apps with real-time traffic data, but maintain awareness of cardinal directions and major geographic features so you're not completely lost if your device fails.

Emergency and Survival Situations

In genuine emergencies, trust must be context-dependent:

GPS Priority Scenarios:

Compass Priority Scenarios:

Best Practice: In emergency preparation, carry both tools. Use GPS to establish and report your position, then consider using compass navigation to conserve battery power for subsequent position updates or emergency communication.

Can You Fully Trust One Tool Alone?

The honest answer is no - exclusive reliance on either tool introduces unacceptable risk in serious navigation contexts. Each tool has failure modes that the other compensates for:

Over-dependence on GPS has created a generation of navigators with atrophied traditional navigation skills who are helpless when technology fails. Conversely, refusing to adopt GPS technology means forgoing substantial safety and efficiency improvements that modern tools provide.

The Smart Choice: Building Trust with Both Compass and GPS

Integrated Navigation Strategy:

  1. Primary Tool Selection: Choose GPS as your primary navigation tool for its precision, functionality, and efficiency in route planning and tracking
  2. Backup Redundancy: Always carry a quality compass and appropriate paper maps as backup systems, stored where they won't be lost with your GPS device
  3. Skill Maintenance: Regularly practice traditional map-and-compass navigation to maintain proficiency. Set periodic "analog days" on trips where you navigate without GPS to preserve skills
  4. Complementary Use: Use both systems together - GPS for precision positioning and route tracking, compass for quick bearing checks and confirming GPS accuracy
  5. Battery Management: Carry spare batteries or charging solutions for GPS devices. Learn your device's power consumption patterns and plan accordingly
  6. Environmental Assessment: Before any journey, consider which tool is likely to be most reliable in your intended environment and conditions

Trust Through Understanding:

Ultimately, trust in navigation tools comes not from blind faith in technology or nostalgic attachment to traditional methods, but from understanding how each tool works, recognizing its limitations, and developing the judgment to use the right tool for each situation. The navigator who carries both compass and GPS, understands both systems' principles and limitations, and maintains proficiency with both tools has earned genuine confidence in their navigation capability - because they're prepared for virtually any scenario. This integrated approach represents not hedging your bets, but rather the wisdom of employing complementary tools that together provide robustness, redundancy, and reliability far exceeding what either could offer alone.
